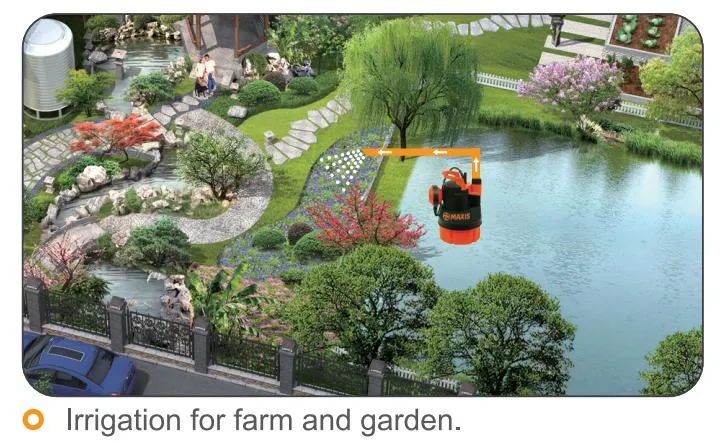

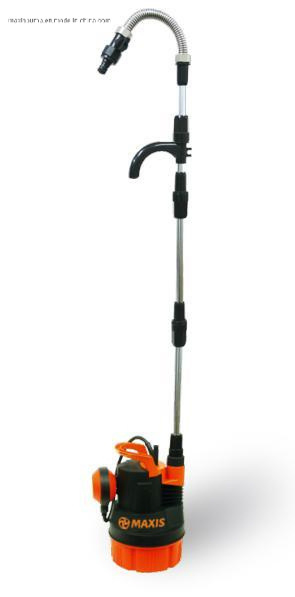

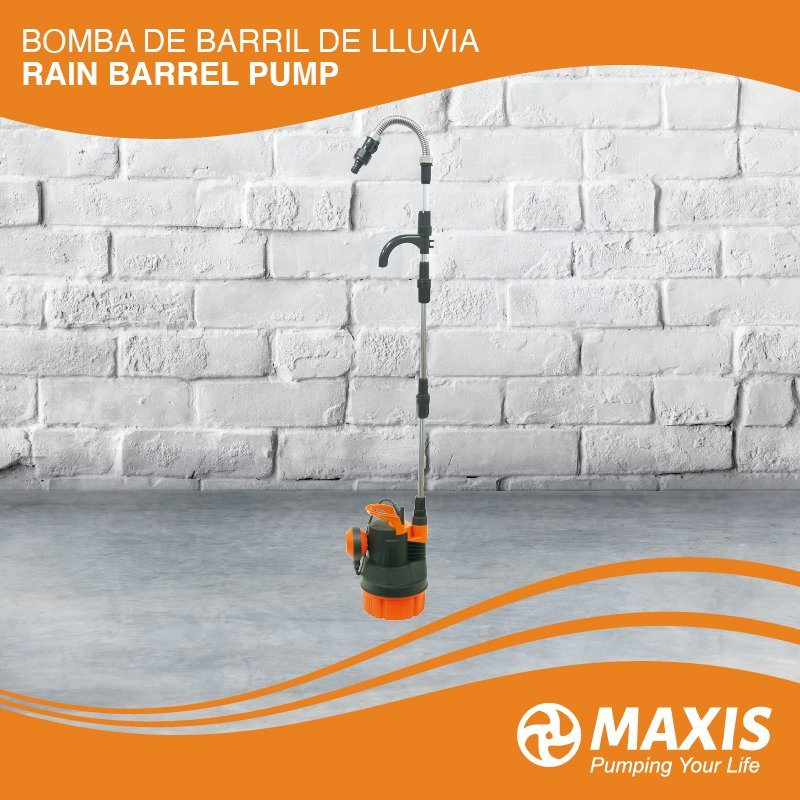

Electric Water Pumps for Home Garden Rain Water Irrigation Watering Machine

Basic Information

Model NO.

MR350

Specification

5.2kg

Origin

China

HS Code

8413709990

Capacity

500,000 PCS/Year

Applications

Can be used to transfer clean or slightly dirty water or other liquids similar to water in physical and chemical properties.

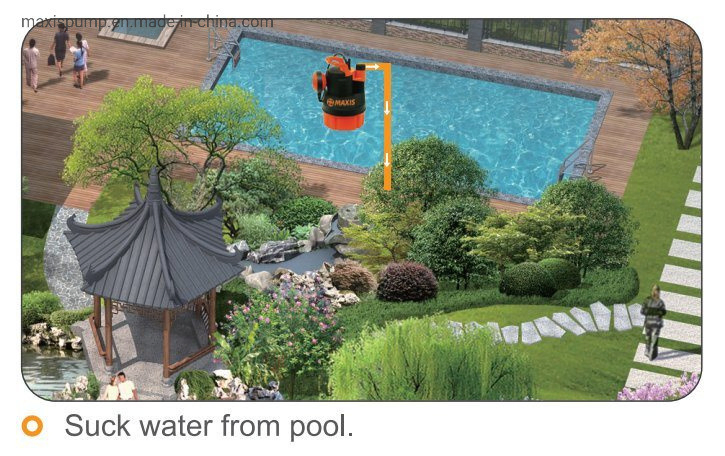

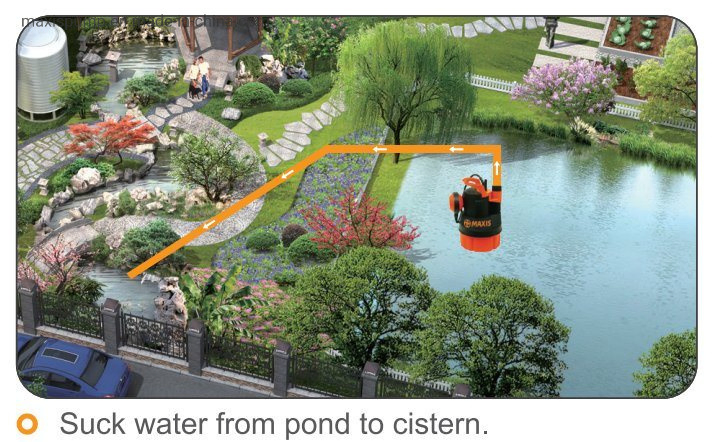

Suitable to be immersed in water for lifting water from wells or pools.
Ideal for draining water from basements.

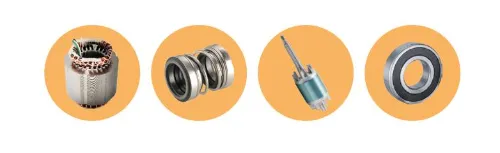

Pump Features

Plastic pump body & impeller
Motor with copper/aluminum winding available
Built-in thermal protector for single phase motor
AISI 304 / Carbon Steel shaft available
High quality bearing
Max. liquid temperature: +40ºC
Max. suction: +8m

Technical Data

Model	Power	HP	Max Flow	Max Head	Max Suction	Inlet / Outlet	Protection
MR350	350W	1/2 HP	5500 L/H (90 L/Min)	11 M	7 M	3/4"	IPX8

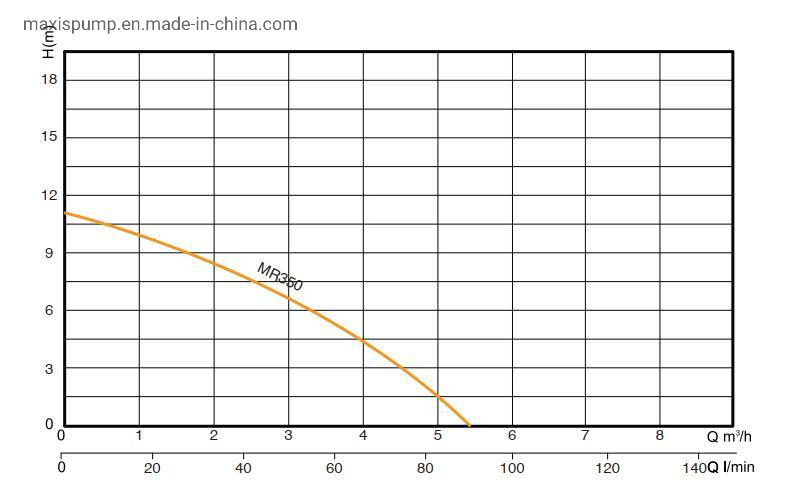

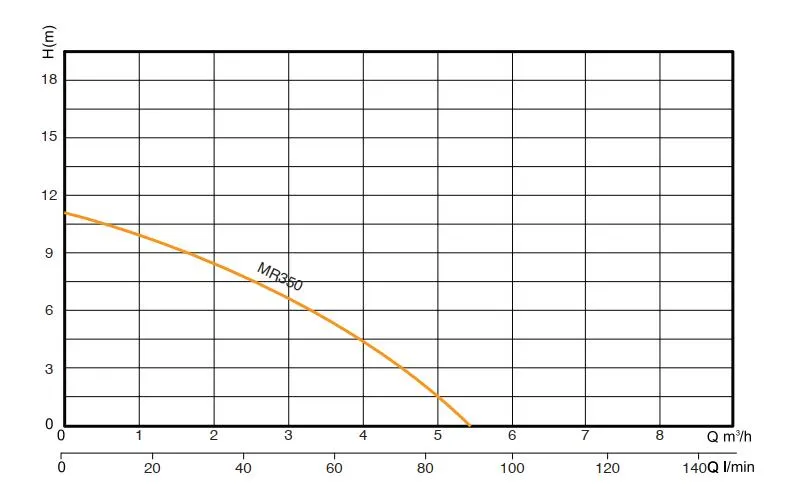

Performance Curve

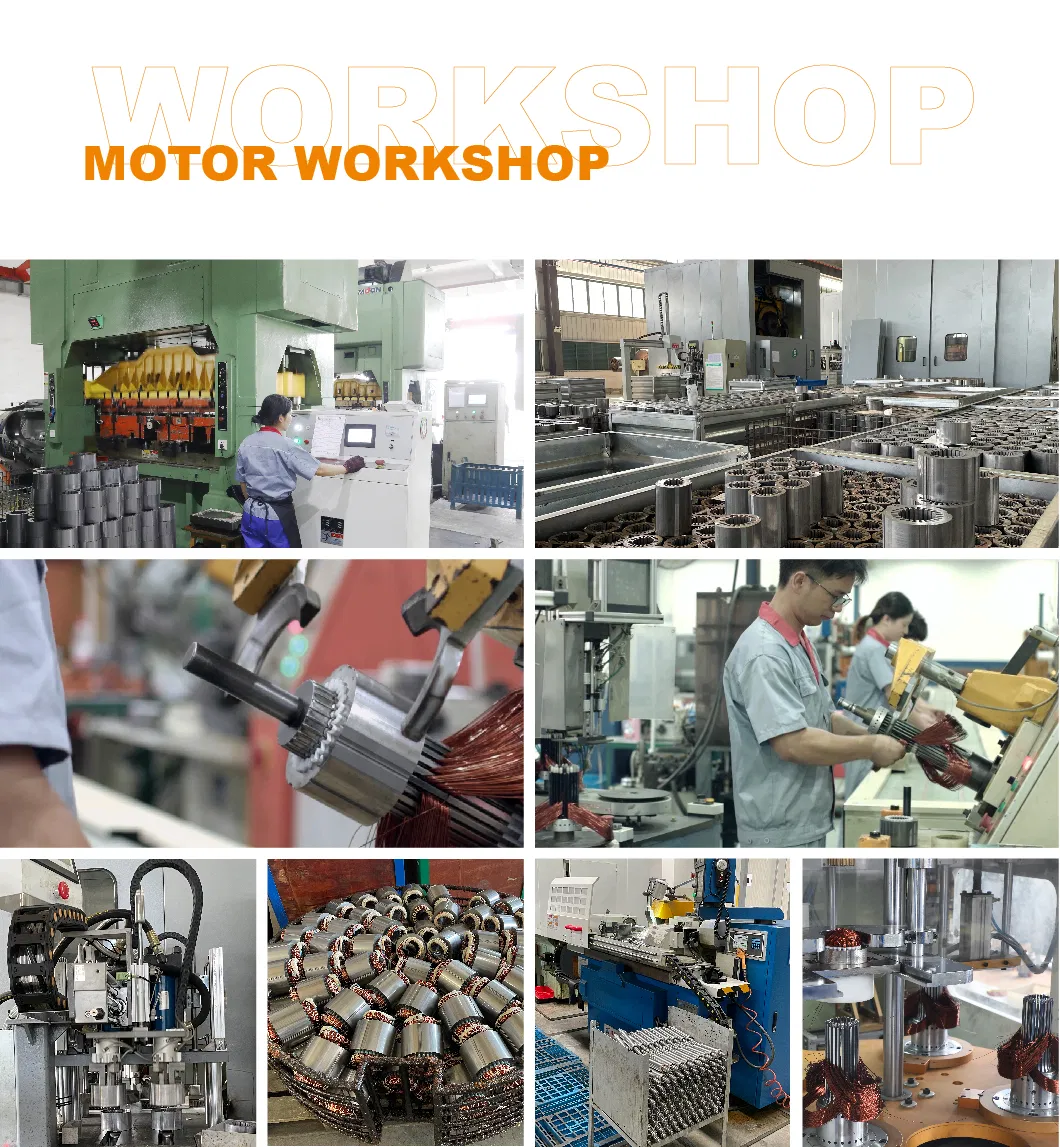

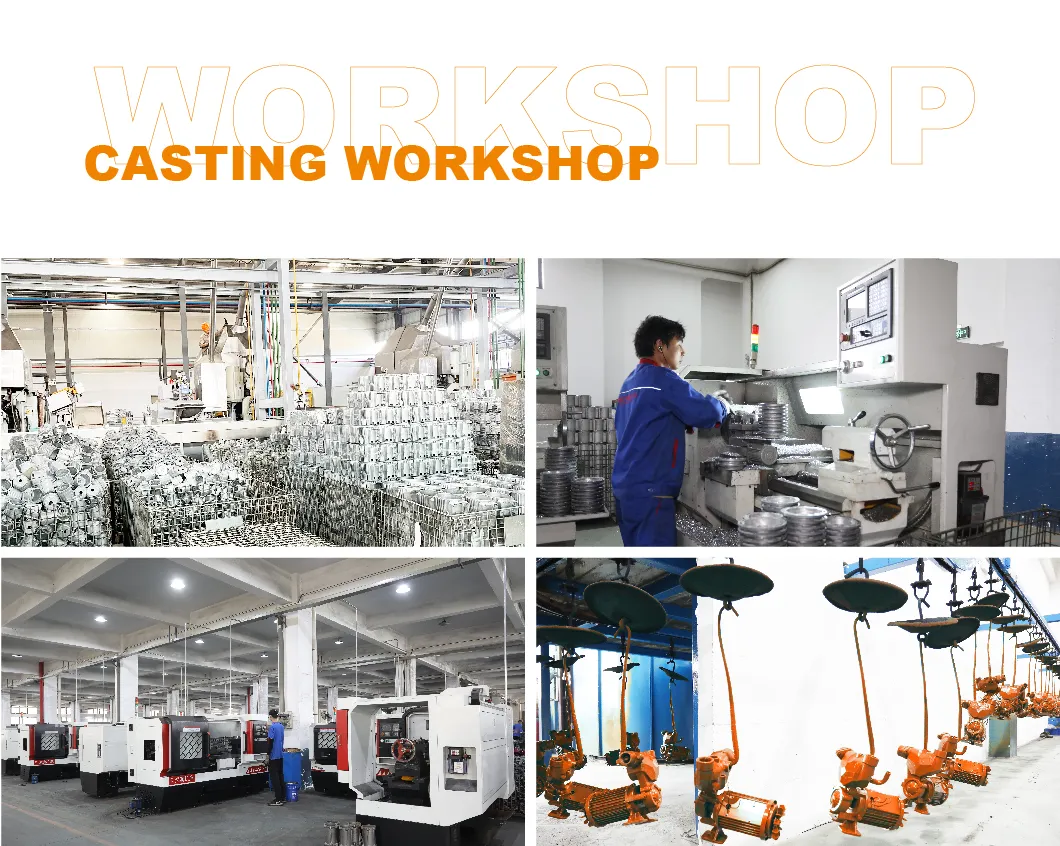

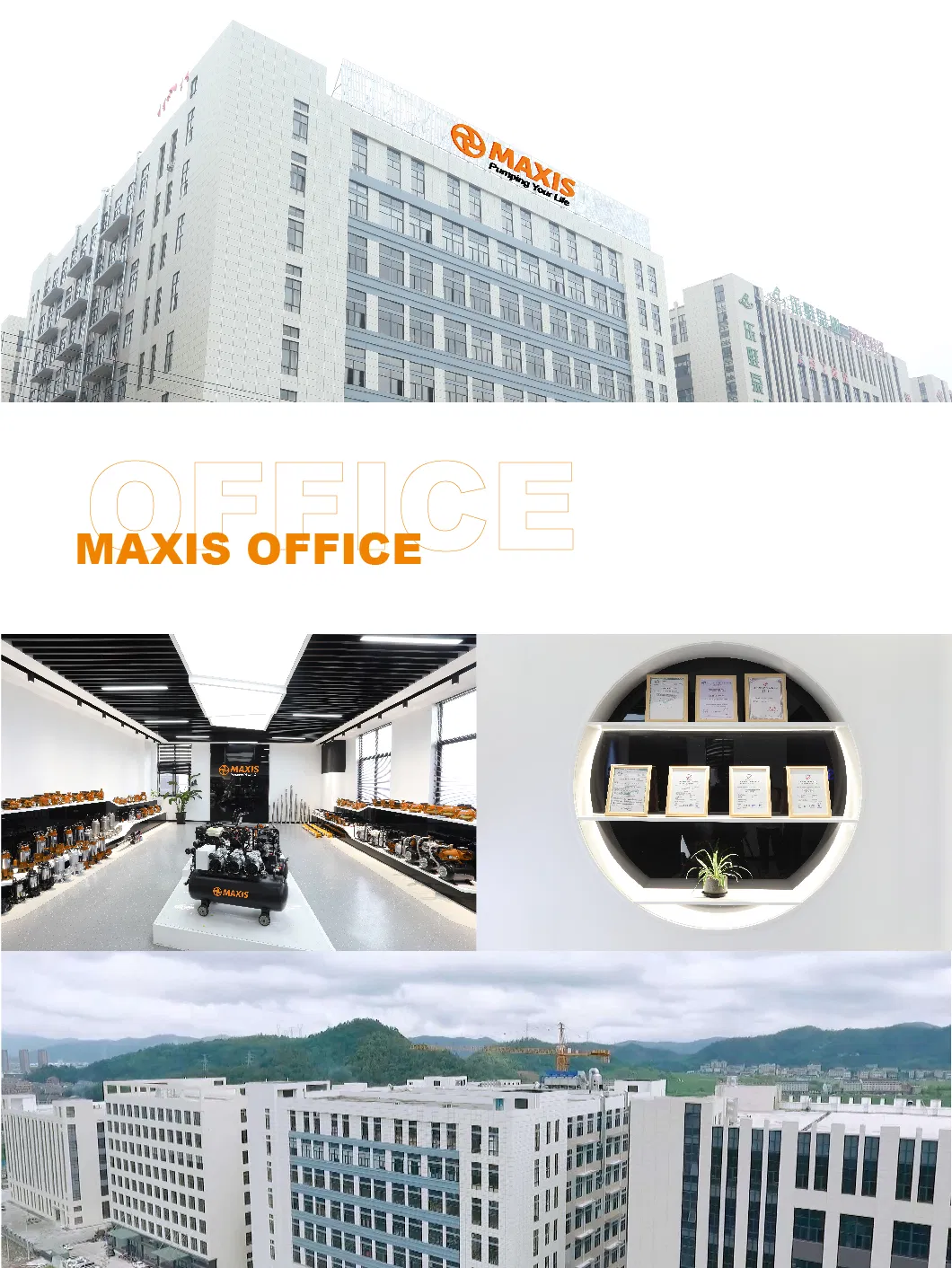

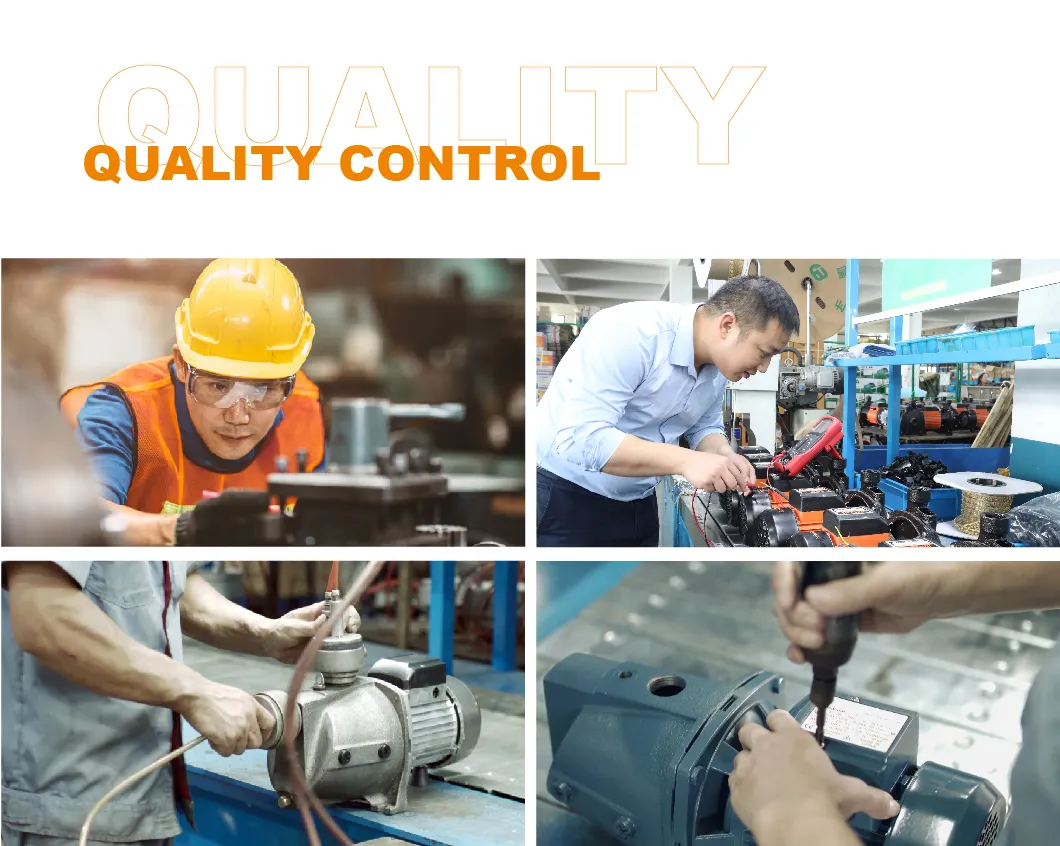

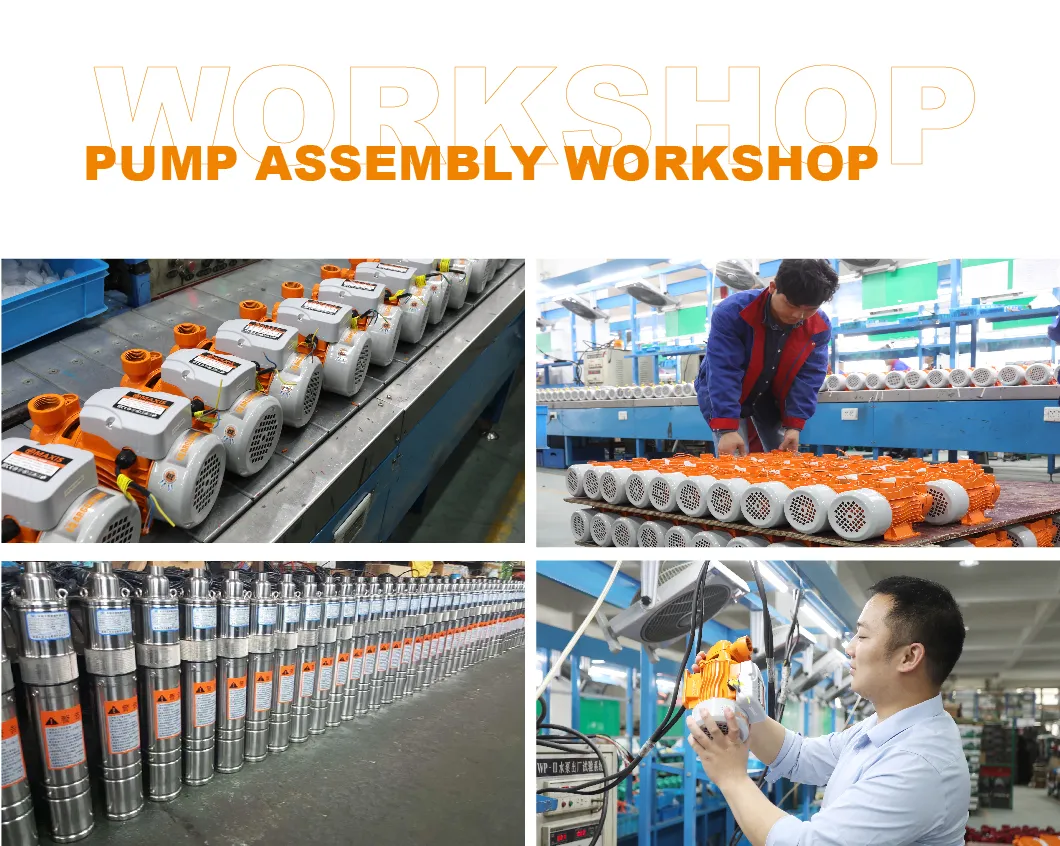

Production View

Frequently Asked Questions

What types of water can the MR350 pump handle?

The MR350 is designed to transfer clean or slightly dirty water, as well as other liquids that share similar physical and chemical properties with water.

Is the motor protected against overheating?

Yes, the single-phase motor comes with a built-in thermal protector to prevent damage from overheating during operation.

What is the maximum flow rate and head for this model?

The pump offers a maximum flow rate of 5500 Liters per hour (90 L/Min) and a maximum head height of 11 meters.

Can this pump be used for basement drainage?

Absolutely. It is specifically suitable for being immersed in water to drain basements or lift water from wells and pools.

What are the material specifications for the shaft and body?

The pump body and impeller are made of durable plastic. For the shaft, both AISI 304 stainless steel and carbon steel options are available depending on your requirements.

What is the protection rating of the MR350?

The pump features an IPX8 protection rating, ensuring it is safe for continuous immersion in water.
